Antistatic PVC Floor Tiles Conductive Vinyl Flooring | ESD and Antistatic Solution

Ask Lasest Price
Brand Name :	None
Model Number :	HZ-F01
Certification :	Rohs, CE
Price :	6usd/m2
Payment Terms :	T/T, D/P,
Delivery Time :	5-7 work days

Add to Cart

Product Details
Company Profile

Antistatic PVC Floor Tiles Conductive Vinyl Flooring | ESD and Antistatic Solution

Description of Conductive Floor Tiles:

The anti-static pvc floor is made up of various materials, including carbon fibers, which will pass the electrostatic charge to the Floor to reduce the risk of a static discharge from physical contact.
It is used to shield devices and other objects from damage caused by static electricity accumulated in the workplace.

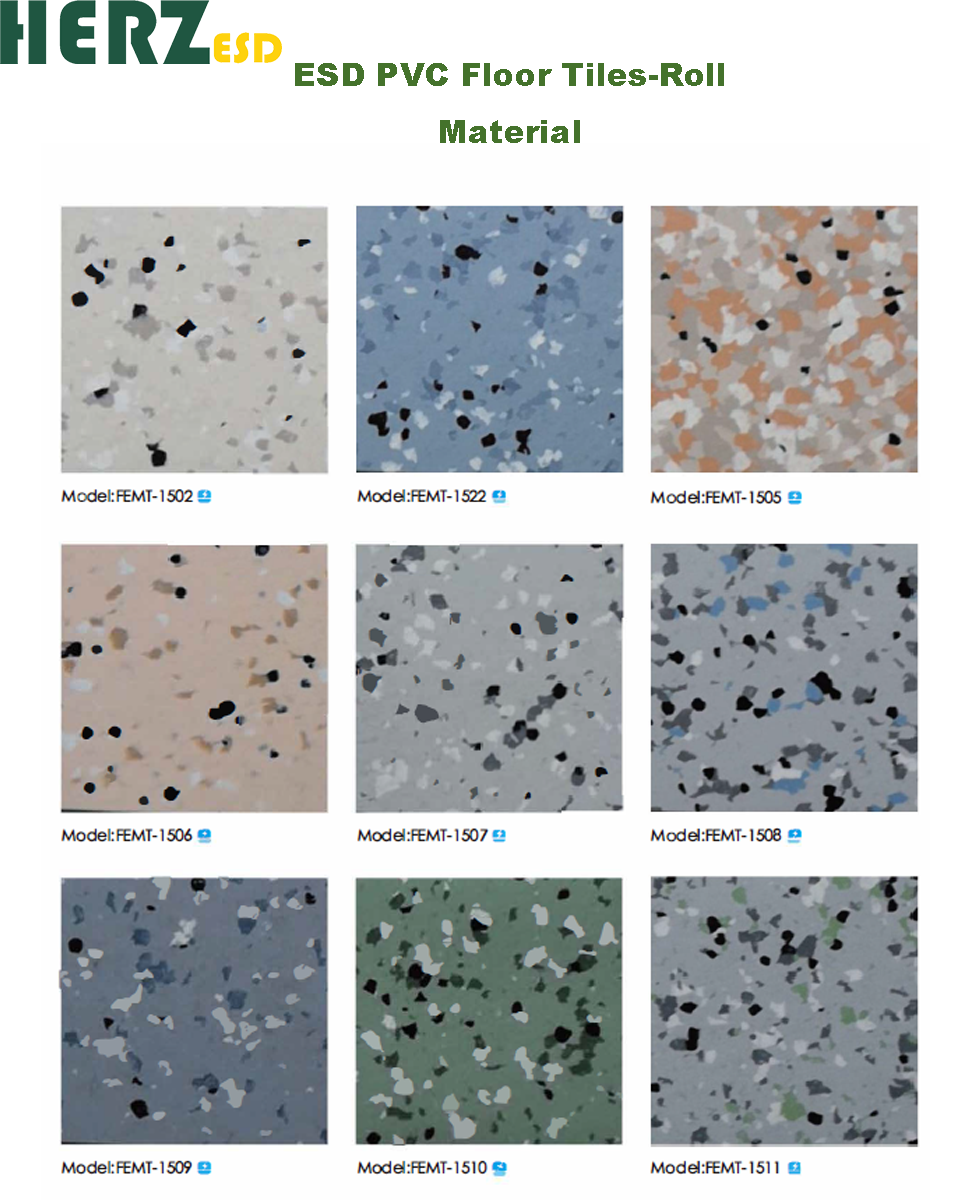

Size Spec:

Sheet size: 600mm*600mm/900mm*900mm
Roll size: 2m*20m/Roll

Thickness: 2.0mm/3.0mm (2.5mm customized)

PVC flooring features two main characteristics: stain resistance and easy cleaning.

Stain resistance is achieved through seamless interlocking and PUR surface treatment.
Various stains on PVC flooring do not penetrate the floor, preventing dirt residue and odors.

Item	Standard	Index
Size	EN426	600*600mm
Size	EN426	900*900mm
Thickness	EN428	2.0, 2.5, 3.0mm
Weight	EN430	2.0mm, 3.8kgs/m³
		2.5mm, 4.8/kgs/m³
		3.0mm, 5.8/kgs/m³
Surface Rresistance	DIN51953	10⁴-10⁶ Ω Conductive
Surface Rresistance	ASTMF-1550 or NFPA99	10⁶-10⁹ Ω Dissipative
Decay Time	SJ/T10694-2006(VI<100V)	Equal 0.4S
Charge Voltage	SJ/T10694-2006(VI<100V)	Equal 70
Fire Resistance	DIN 4102	B1
Combustion Properties	SJ/T11236-2001(<10s,FV-0)	Equal 0.35s Ifv-0
Amount of anti-wear	SJ/T11236-2001(less than 0.02g/cm³, 110r)	Equal 0.014
Anti-wear Properties	EN660pt₂	Ten-T < 2.0 mm³
Wheel Pressure	EN425	No influence
Residual Concavity	EN433, DIN51955	0.03mm(2.0mm)
		0.035mm(2.5mm)
		0.04mm(3mm)
Dimensional stability	EN434	Less than 0.1%
Color fastness	IDO105BO2	At least 6
Resistance to chenmicals	DIN423,DIN51958	offers excellent resistance ask for special sheet
