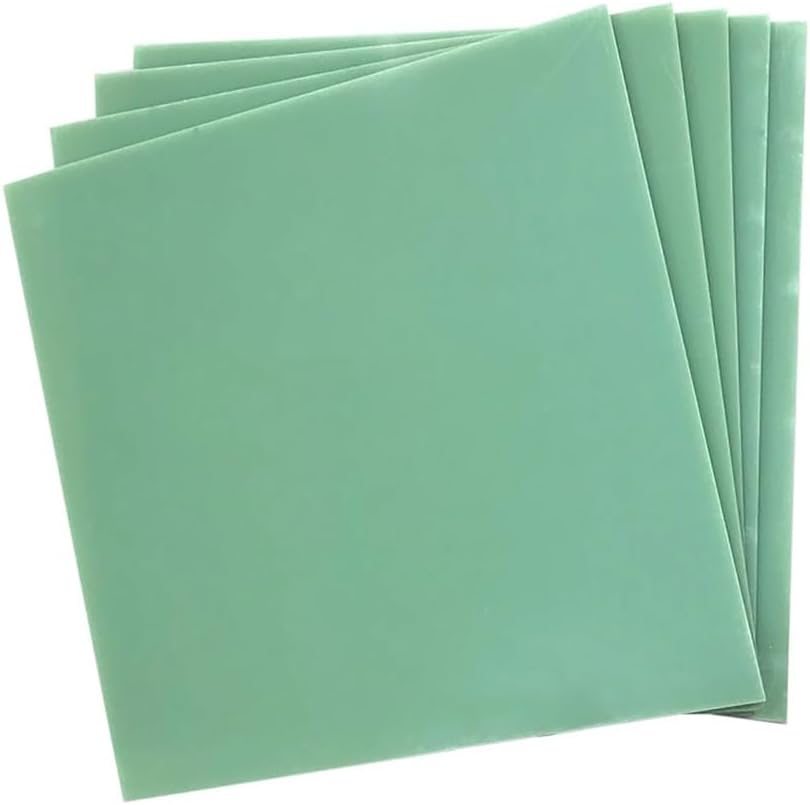

FR4 Epoxy Fiberglass Sheet 1020mm x 1220mm in Thicknesses 3/4/5mm

Description

Made from high-quality fiberglass and epoxy resin, G10 FR4 offers exceptional mechanical strength, excellent insulation properties, and high heat resistance. Ideal for applications in electronics, electrical equipment, and industrial machinery.
With stable performance and compliance with international quality standards, it can be customized to meet specific size and shape requirements.

G10 fiberglass boards are made of a special glass epoxy laminate that has extremely high strength.
G10 fiberglass is used in marine applications due to its superior strength, moisture resistance, and excellent fire and electrical insulation.

Key Features

Temperature: Up to +120°C continuous (+130°C intermittent).
Good mechanical and electrical characteristics.
Good chemical resistance.
High strength.

Shipment:

Data sheet

Size:1020mm x1220mm, can be customized size
Thickness: 0.3mm - 50mm; Special thickness can be customized


	Properties/Items	Test Method	Unit	HLD-B002	HLD-B003
Physical Data	Specific Gravity/Density		g/m³	2.0-2.1	2.0-2.1
	Color			Light Green	Light Green
	Temperature Index		℃	120	120
	Water Absorption	E-24/50+D-24/23	%	0.07-0.16	0.08-0.2
Mechanical properties	Bending Strength	A	Mpa	≥440	≥400
	Impact strength	A	kJ/㎡	≥90	≥70
	Rockwell Hardness	A	M	110	90
	Compressive Strength	A	Mpa	340-440	280-330
				290-390	180-230
Electrical Data	Dielectric strength	2mm, in oil	KV/mm	≥14	≥14
		2mm, in oil	KV	40	40
	Unit resistivity	C-96/20/65	Ω.cm	≥	≥
		C-96/20/65+C-96/40/90	Ω	≥	≥
