ESD PCB Magazine Rack
ESD PCB Magazine Rack Antistatic SMT PCB Storage Rack

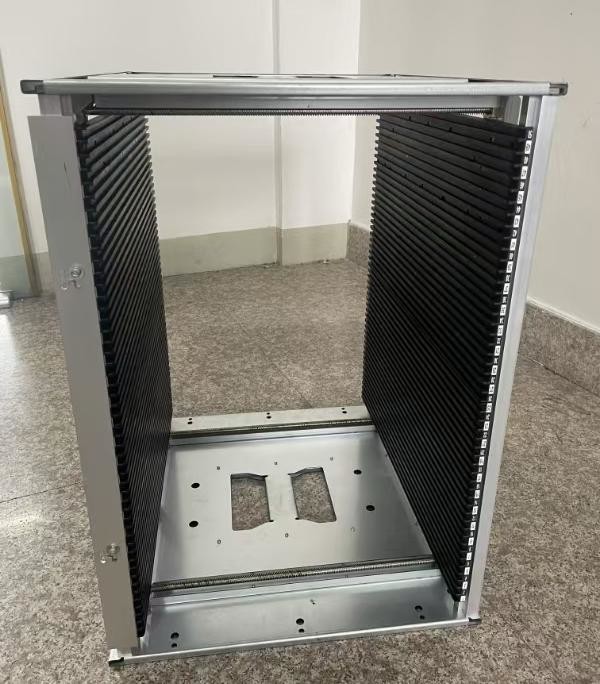

A PCB Magazine Rack is constructed from volume-conductive
polypropylene and metal, designed specifically for transporting PCB
boards in automated assembly lines.
These antistatic PCB magazine racks are ideal for the production,
storage, and transportation of PCBs.
With a robust sidewall and metal frame, they offer exceptional
durability and long-lasting performance.
Rack & Pinion System: Enables smooth and precise width adjustment for various PCB
sizes.
ESD-Safe Card Guides: Equipped with 50 slots to ensure secure and static-safe handling
of PCBs.
Heat-Resistant: Card guides can withstand board temperatures up to 200°C, making
them suitable for high-temperature processes.
Universal Compatibility: Designed to be compatible with all major equipment brands.
Product Description
| Description | HZ-2607 |
Contour Size | (L×W×H)mm: 460*400*563 |
Storage slot | 50pcs of Plates can be stored |
The specification of PCB plates | 460×(50－330)mm |
Guide slot of side plate | Depth 4mm, Width 5.5mm, Pitch 10mm |
Material | Top and bottom Base are metal base |
Fix method | Belt, Screw or gear track adjustable |
Side plate | Five pieces assembled |
Weight | 8.0KG |
Temperature | 80 ℃,120℃ and 200 ℃ are available |
Customization
Different size available, please refer below
| Model | Outer size(mm) | PCB plate size(mm) | Base material | Adjust type | Temp. | Slots | Weight
(KG) |
| HZ-2601 | 355*315*580 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 50 | 5 |
| HZ-2602 | 355*315*305 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 25 | 3.4 |
| HZ-2603 | 355*320*563 | 355* (50-250) | Metal | Screw/gear track | 80℃/120℃/200℃ | 50 | 5 |
| HZ-2604 | 355*320*563 | 355* (50-250) | Plastic | Gear track | 80℃/120℃ | 50 | 4.5 |
| HZ-2605 | 355*320*563 | 355* (50-250) | Metal | Screw/gear track | 80℃/120℃ | 50 | 6.5 |
| HZ-2606 | 355*320*563 | 355* (50-250) | Metal | Gear track | 80℃/120℃ | 50 | 6 |
| HZ-2607 | 460*400*563 | 460*(50-330) | Metal | Screw/gear track | 80℃/120℃/200℃ | 50 | 8 |
| HZ-2608 | 535*460*570 | 535*(50-390) | Metal | Screw/gear track | 80℃/120℃ | 50 | 10.5 |
| HZ-2609 | 535*530*570 | 535*(120-460) | Metal | Screw/gear track | 80℃/120℃ | 50 | 12 |
| HZ-2610 | 630*530*570 | 630*(50-460) | Metal | Screw adjust. | 80℃ | 50 | 13 |
| HZ-2611 | 355*320*560 | 355* (50-250) | Plastic | Chain adjust. | 80℃ | 50 | 6 |
| HZ-2612 | 355*320*560 | 355*(80-250) | Metal | Screw/gear track | 550℃ | 50 | 6.8 |
| HZ-2613 | 400*320*563 | 400*(50-250) | Metal | Screw/gear track | 80℃ | 50 | 6 |
Company Profile
Shanghai Herzesd Industry Co., Ltd
Specialized range of ESD products including anti-static equipment,
ESD Work Station Accessories, Safe Packaging Materials, ESD Control
Materials, etc.
In today's cutting-edge competition of electronic products,
Shanghai Herzesd Industry Co., Ltd enjoys a high reputation amongst
customers due to its excellent product quality, reasonable price
range, and top-class professional services. Established in the year
2018, we are a reputed manufacturer, supplier, exporter, and trader
of ESD Products which include ESD Equipments, Anti-static
Equipments, ESD Work Station Accessories, ESD Shielding bags, ESD
Magazine Racks, ESD PCB trolleys, ESD Workstation, ESD Garments,
ESD Fabrics, Safe Packaging Materials, ESD Control Materials,
Static Control Equipments, etc.
Packaging & Shipping
ESD Magazine Rack will be packaged in a cardboard box with foam
cushioning to ensure safety during transit.
The box will be marked with the name of the product, shipping
address, and other relevant shipping information.
The package will be shipped to the customer’s address via a
reliable courier service.
