Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SMT Application: Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system

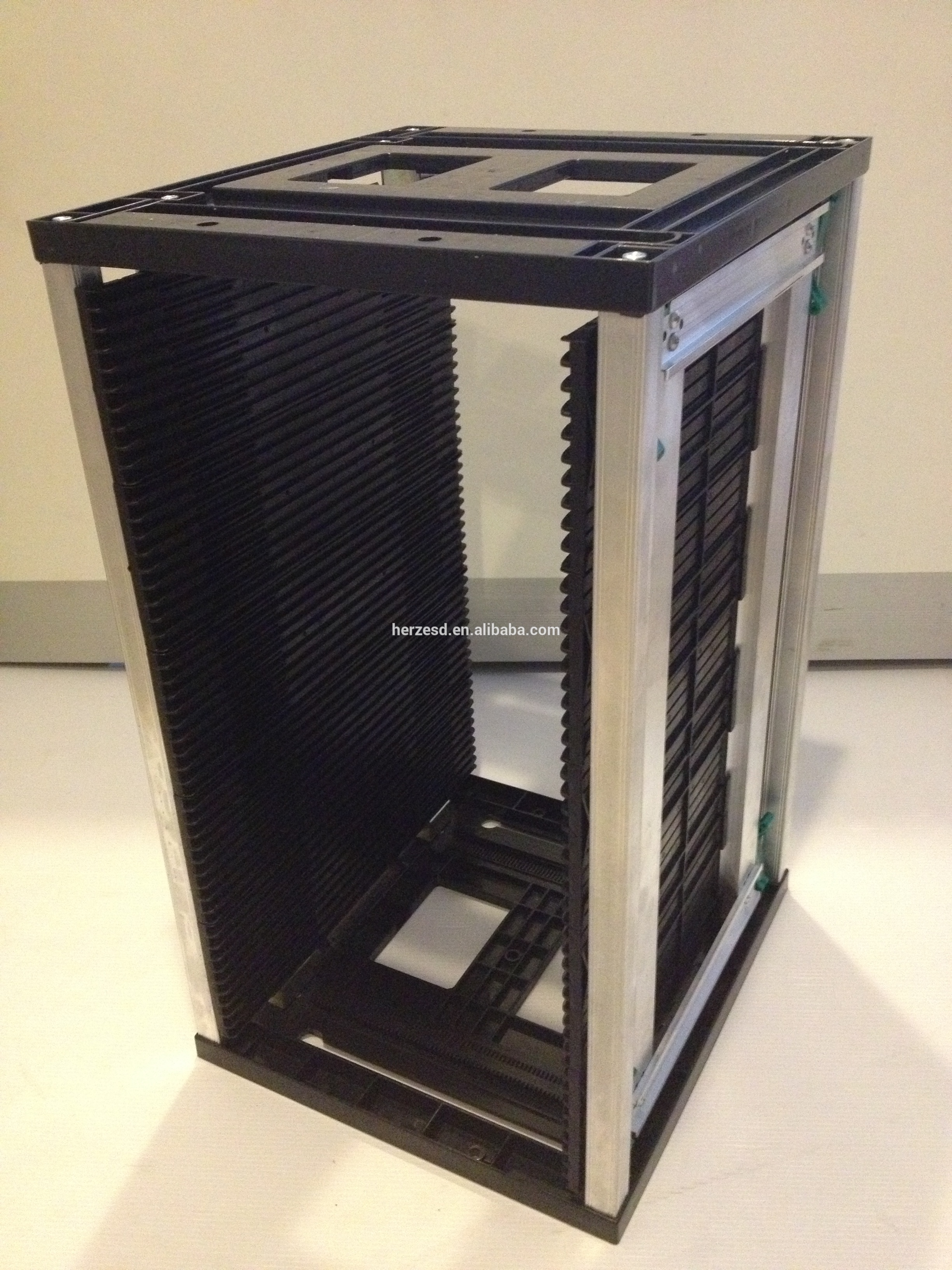

Description HZ-2604
Contour Size (L×W×H)mm: 355*320*563
Storage slot 50pcs of Plates can be stored
The specification of PCB plates 355×(50-250)mm
Guide slot of side plate Depth 3mm, Width 5.5mm, Pitch 10mm
Material Top and bottom Base are plastic base
Fix method Gear track adjustable
Side plate Five pieces assembled
Weight 4.5KG

The ESD products manufactured and supplied by Shanghai Herzesd Industrial are the result of meticulous planning and technological excellence. Our products showcase a fine amalgamation of excellence, quality, innovation, and technology. A continuous upgradation is always at place to enhance the security features applicable at various stages and premises on ESD accessories. These products are long lasting and equipped with precision technology. We have a group of hard working personnel who keep detecting the machines for better security.

1, Why you need ESD protect for your production line?

Electronic Components or assemblies at risk from electrostatic discharges (ESD)
are among those sensitive elements which can be destroyed or damaged if the permitted levels of current or impact energy are exceeded.
As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements.
This type of construction element is mostly damaged through human mishandling.
A human-being can charge several thousands of volts just by walking.
A discharge can be felt by humans from approximately 2000-3000 V,
a current which is already well above the 'tolerance level' of many ESD components.

Before buying or implementing ESD safe products one needs implementing an ESD safe procedure according to the
ESD standards IEC 61340 or ANSI S2020 which is the foundation of
ESD preventive protective work and a greater guarantee of quality assurance.

Besides our Anti-Static conductive ESD Workstations we offer an extensive range of
Antistatic ESD Chairs, Antistatic ESD Cleaning & Maintenance, Antistatic ESD Clothing, ESD Shoes ESD Footwear,
Antistatic ESD Flooring & Antistatic ESD Table Mats, ESD Safe Packaging, ESD Personal Grounding Materials,
Anti-Static ESD Protective Storage & Warehousing Systems EPA, ESD Storage Boxes,
ESD Test & Measuring Equipment, ESD Trainings, ESD Support & ESD Audits.

2, Why you choose HerzESD?

HerzESD strives to serve our customers better by offering correct and clear explanatory answers.
We try to do so, even when informing our customers better,
means contradicting a more established but sometimes flawed opinions on the market.
