ESD SMT Magazine Rack For PCB Assembly PCB ESD Magazine Rack

Ask Lasest Price
Brand Name :	HERZESD
Model Number :	HZ-2603
Price :	20usd
Payment Terms :	T/T
Supply Ability :	100000
Delivery Time :	3-5day
Certification :	ROHS、REACH

Add to Cart

Product Details
Company Profile

ESD SMT Magazine Rack For PCB Assembly PCB ESD Magazine Rack

Product Description

Herzesd magazines rack meet standard dimensions most frequently used on automated lines. Strong injection molded construction with metal reinforcement (top and bottom). Standardized plate that fits most popular brands on the market.

Feature:

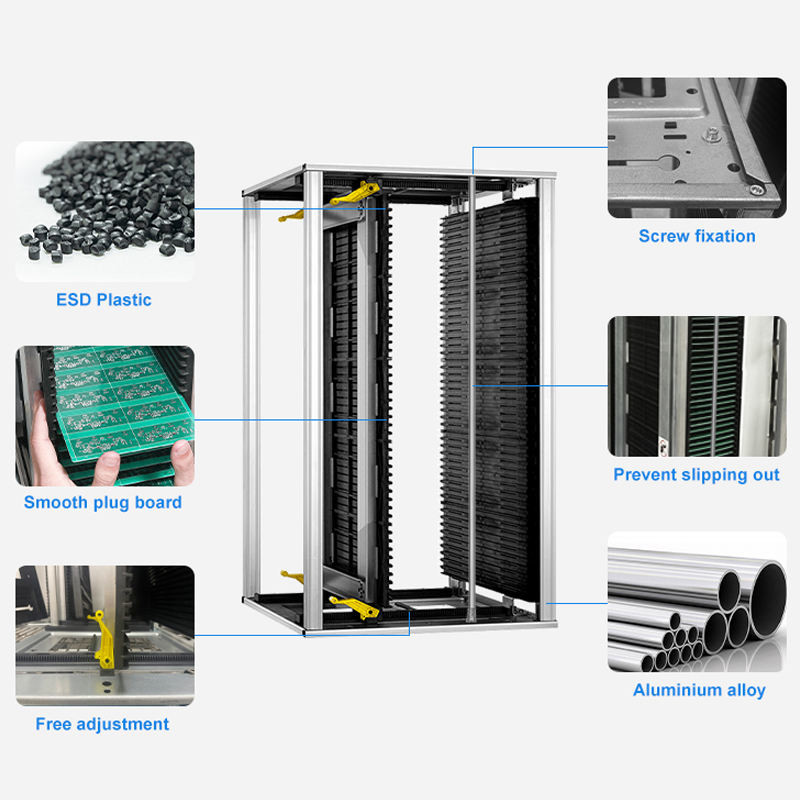

Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy. Store and logistic PCB, Electronic components. ESD Protection on SMT, SMD , Semiconductor industrial.

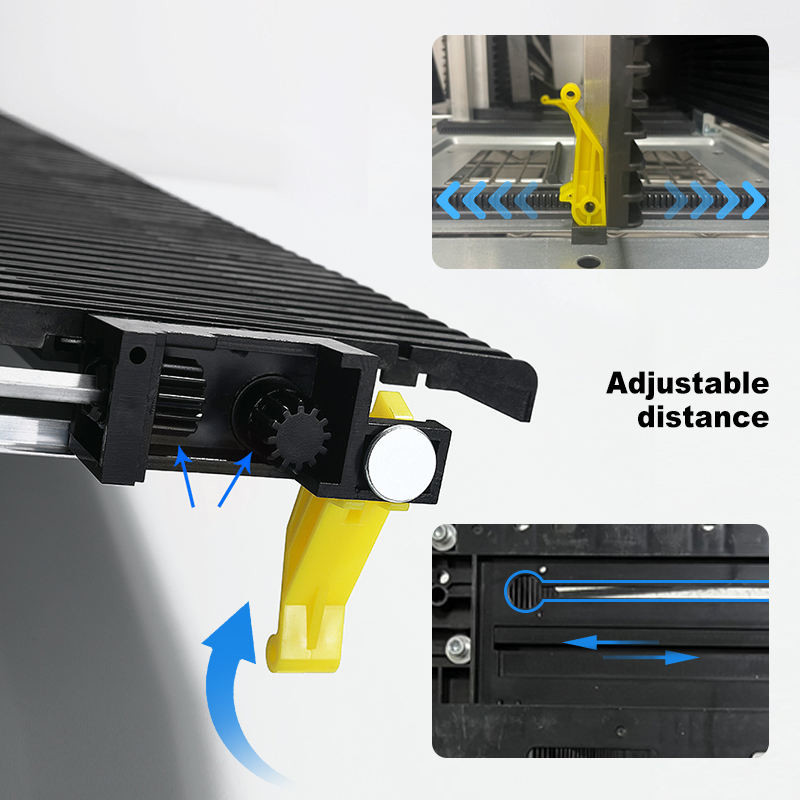

Not subject to accidental change in width; no wear of moving parts. Partition made of assembled plastic parts. This system provides a better dimensional stability when strong temperature variations. Meant for 50 PCB’s.

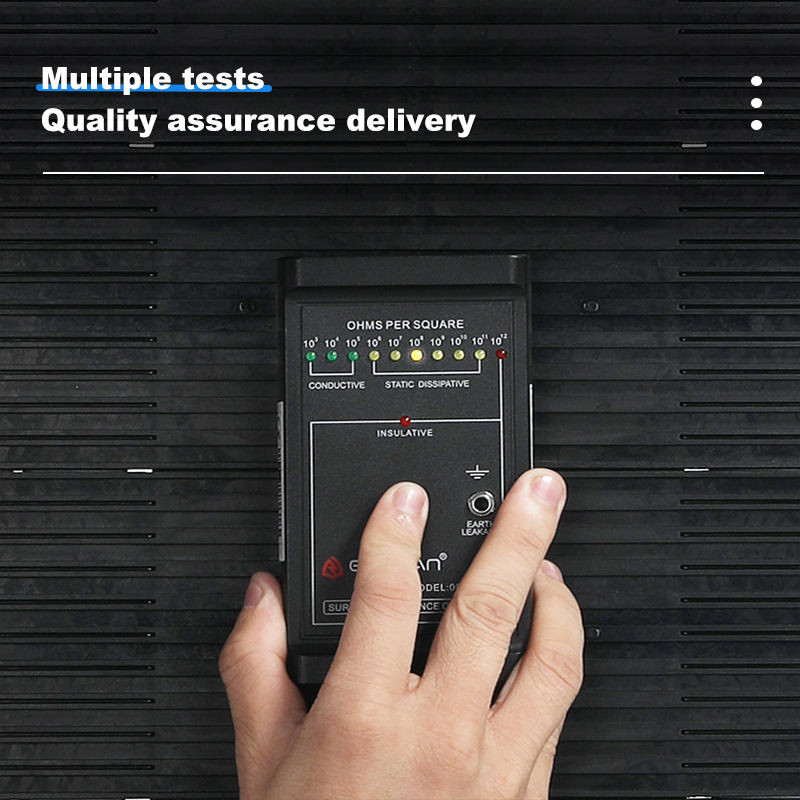

Surface Resistance: 103－109Ω

Model	Outer size(mm)	PCB plate size(mm)	Base material	Adjust type	Temp.	Slots	Weight (KG)
HZ-2601	355315580	355*(80-250)	Plastic	Screw adjust.	80℃	50	5
HZ-2602	355315305	355*(80-250)	Plastic	Screw adjust.	80℃	25	3.4
HZ-2603	355320563	355* (50-250)	Metal	Screw / gear track	80℃/120℃/200℃	50	5
HZ-2604	355320563	355* (50-250)	Plastic	Gear track	80℃/120℃	50	4.5
HZ-2605	355320563	355* (50-250)	Metal	Screw / gear track	80℃/120℃	50	6.5
HZ-2606	355320563	355* (50-250)	Metal	Gear track	80℃/120℃	50	6
HZ-2607	460400563	460*(50-330)	Metal	Screw / gear track	80℃/120℃/200℃	50	8
HZ-2608	535460570	535*(50-390)	Metal	Screw / gear track	80℃/120℃	50	10.5
HZ-2609	535530570	535*(120-460)	Metal	Screw / gear track	80℃/120℃	50	12
HZ-2610	630530570	630*(50-460)	Metal	Screw adjust.	80℃	50	13
HZ-2611	355320560	355* (50-250)	Plastic	Chain adjust.	80℃	50	6
HZ-2612	355320560	355*(80-250)	Metal	Screw / gear track	550℃	50	6.8
HZ-2613	400320563	400*(50-250)	Metal	Screw / gear track	80℃	50	6

ESD SMT Magazine Rack For PCB Assembly PCB ESD Magazine Rack
