Name: Customizable ESD PCB Storage Circulation Cart Trolley
Brand: Herzesd
Price: 40 USD

Add to Cart

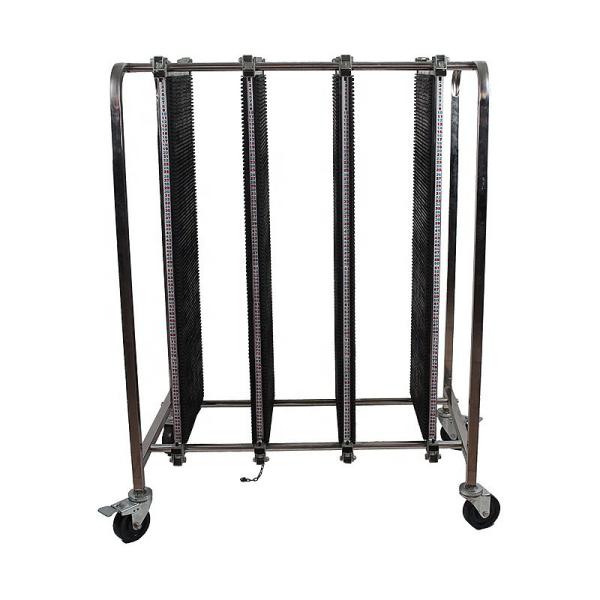

Customizable ESD PCB Storage Circulation Cart Trolley

It is made of 304#, 202# stainless steel pipes, and PPE conductive plastic materials.
Cart size, slot length can be customized upton customers' request.
Surface resistance: 104~108ohms
Frame size: Refer to size c
Number of column available: 3 COLUMNS, 100 slots per column
Slot board: slot width 4.5mm, depth: 4.5mm, length: 350mm, pitch 10mm
Load capacity: 150kg

Model	Size(mm)	Flashboard Width	Slot width	Depth	Pitch	Slot NO./row	Side plate structure	Adj. method
HZ-27103A	950×620×1300	350mm/46 0mm/530m m/630mm	5mm	4mm	10mm	100	4pcs panel joined	Handle adjustable
HZ-27103B	1100×620×1300	350mm/46 0mm/530m m/630mm	5mm	4mm	10mm	100	4pcs panel joined	Handle adjustable
HZ-27104A	900×675×1300	515mm	5mm	5mm	19mm	60/120	One whole piece side plate	Handle adjustable
HZ-27104B	900×450×1300	280/350m m	5mm	5mm	19mm	50/100	One whole piece side plate	Handle adjustable
Remark: Trolley material is stainless steel , all items Volume resistance: 10⁶-10⁹Ω, Any size can be customized according to customer request. adding double flashboard, it can insert more PCBs.

Features:

Every side boards on the ESD PCB trolley can be moved freely, adjusted to different widths, and suitable for storage with different specifications of PCB
Side board is marked with an obvious number, which can avoid the misplacement of the PCB board, and more effectively manage the number of PCB boards.
Equipped with anti-static wheels, ESD cart is lightweight and convenient in the production workshop.
